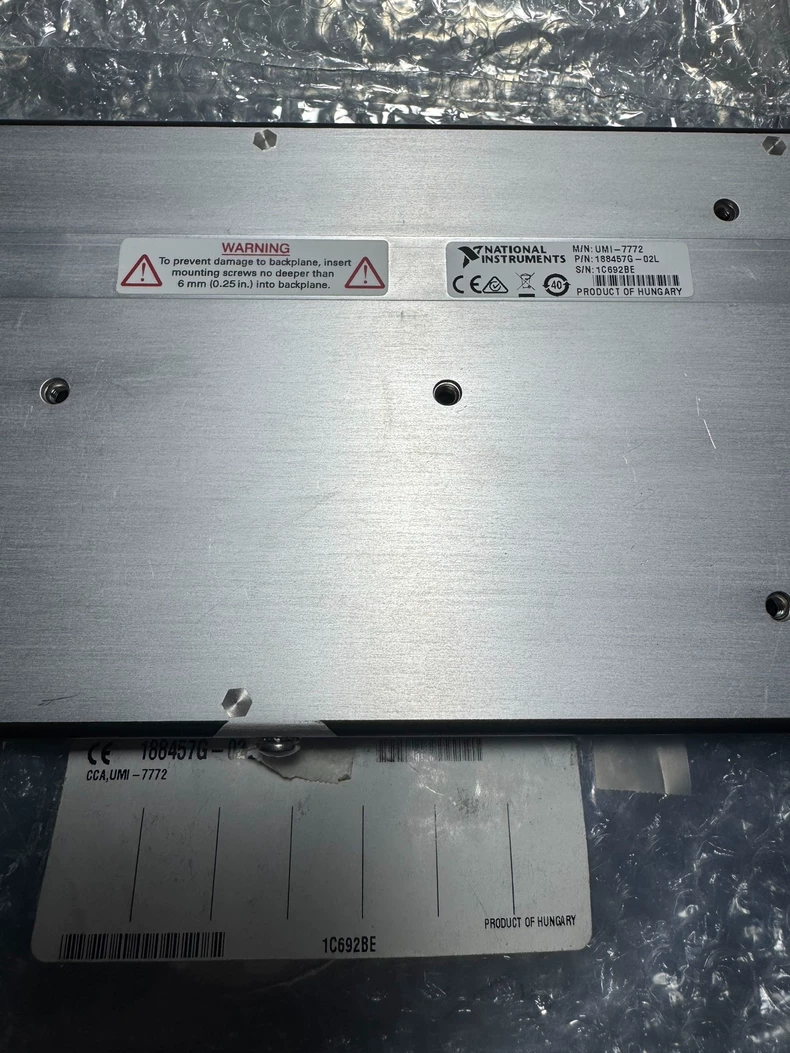

NI UMI-7772 Motion Interface Card for Precision Control
19
People watching this product now!
NI UMI-7772 Motion Interface Card for Precision Control
| Maker | National Instruments |
| Model ID | UMI-7772 |
| Voltage Rating | 24V DC |
| Country | United States |
| Weight (kg) | 0.45 kg |
| Dimensions (L×W×H) | 140 x 100 x 30 mm |
| Service Warranty | 1 year |
| Standards | CE, FCC, RoHS |
| MPN | UMI-7772 |
| Box Contents | 1x UMI-7772 interface card, 1x 68-pin cable, 1x mounting bracket, 1x user manual |
| Axes Supported | 2 axes |
| Encoder Input | Quadrature encoder up to 20 MHz |
| Digital I/O | 8 inputs / 8 outputs |
| Motion Control Type | Stepper or servo drive interface |
| Communication Interface | 68-pin VHDCI connector |
| Maximum Step Rate | 1 MHz |
Precision motion interface card for high-accuracy positioning and multi-axis control
Key benefits: • Plug-and-play with NI motion controllers • High-speed encoder feedback for precise positioning • Compact design saves panel space • Compatible with stepper and servo drives • Robust construction for industrial reliability
Typical applications: CNC machines, robotics, pick-and-place systems, automated test equipment
Lifecycle: Active
