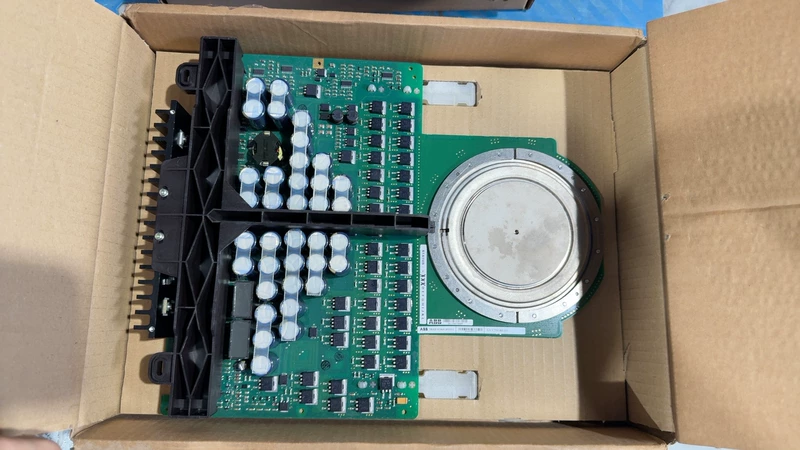

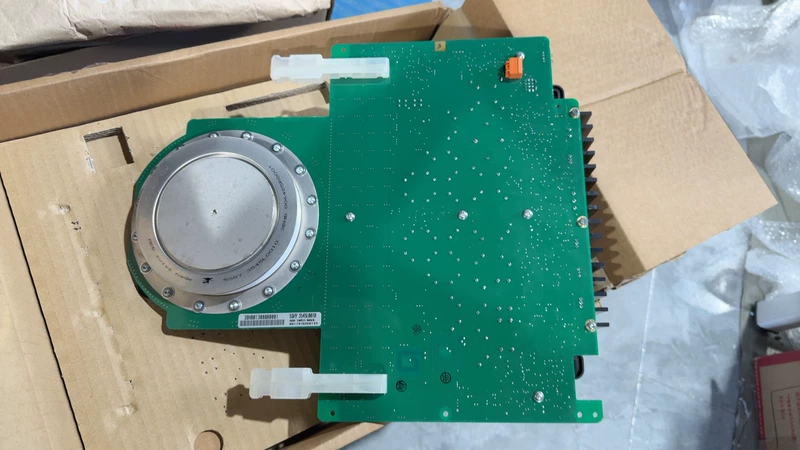

IGCT Module ABB 3BHE009681R0101 for Industrial Drives
16
People watching this product now!
ABB 3BHE009681R0101
High-power IGCT module delivering reliable hard-switching performance for demanding medium-voltage and high-voltage power conversion systems
| Brand | ABB |
| Model | 3BHE009681R0101 |
| Voltage | 4500 V / 6500 V class |
| Country of Origin | Switzerland |
| Weight | 3.2 kg |
| Dimensions | 180 x 130 x 45 mm |
| Warranty | 24 months |
| Certifications | CE, UL, IEC 60747, RoHS |
| SKU / MPN | 3BHE009681R0101 |
| What’s in the box | IGCT module, installation guide, handling precautions, ESD packaging |
| Device Type | Integrated Gate Commutated Thyristor (IGCT) |
| Voltage Rating | 4500 V repetitive peak |
| Current Rating | 1100 A average |
| Turn-off Capability | High-power hard switching |
| Gate Drive | Integrated gate driver board |
| Cooling Method | Press-pack / forced air cooling |
Key benefits: High surge current capability, low conduction losses, integrated gate drive, robust press-pack design, long service life, proven ABB quality
Typical applications: Medium-voltage drives, HVDC converters, STATCOMs, active power filters, industrial rectifiers, renewable energy inverters, traction drives
Lifecycle: Active legacy series, supported by ABB spare-parts and service network for industrial installations
