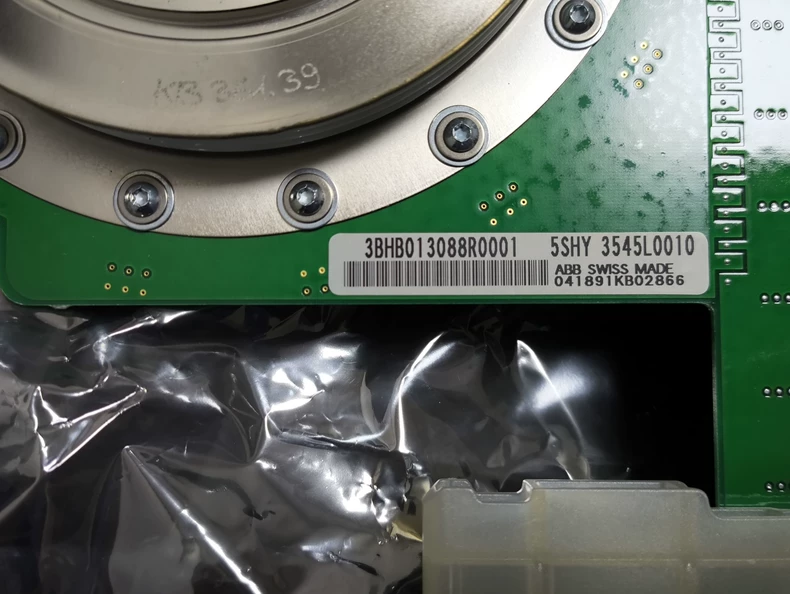

ABB IGCT Module 5SHY3545L0010 3BHE009681R0101 – Power Control
17
People watching this product now!
ABB IGCT Module 5SHY3545L0010 3BHE009681R0101 – Power Control
| Maker | ABB |
| Model ID | 5SHY3545L0010 |
| Voltage Rating | 3300V AC |
| Country | Switzerland |
| Weight (kg) | 2.5 kg |
| Dimensions (L×W×H) | 20 x 15 x 8 cm |
| Service Warranty | 3 years |
| Standards | CE, UL, IEC |
| MPN | 3BHE009681R0101 |
| Box Contents | 1 x IGCT Module, 1 x Mounting Hardware, 1 x Technical Datasheet |
| Current Rating | 4500 A |
| Blocking Voltage | 4500 V |
| Switching Frequency | Up to 1 kHz |
| Gate Drive Voltage | 15V DC |
| Operating Temperature | -40°C to +125°C |
| Module Type | IGCT (Integrated Gate Commutated Thyristor) |
Maximize power control efficiency with ABB's advanced IGCT module, engineered for high-power applications. Achieve superior performance and reliability in demanding industrial systems.
Key benefits: • High current and voltage handling for heavy loads
• Low conduction losses for energy efficiency
• Robust design for extended operational life
• Fast switching for precise control
• Industry-leading certifications for safety
Typical applications: Medium-voltage drives, power converters, wind turbines, industrial motor control
Lifecycle: Active
